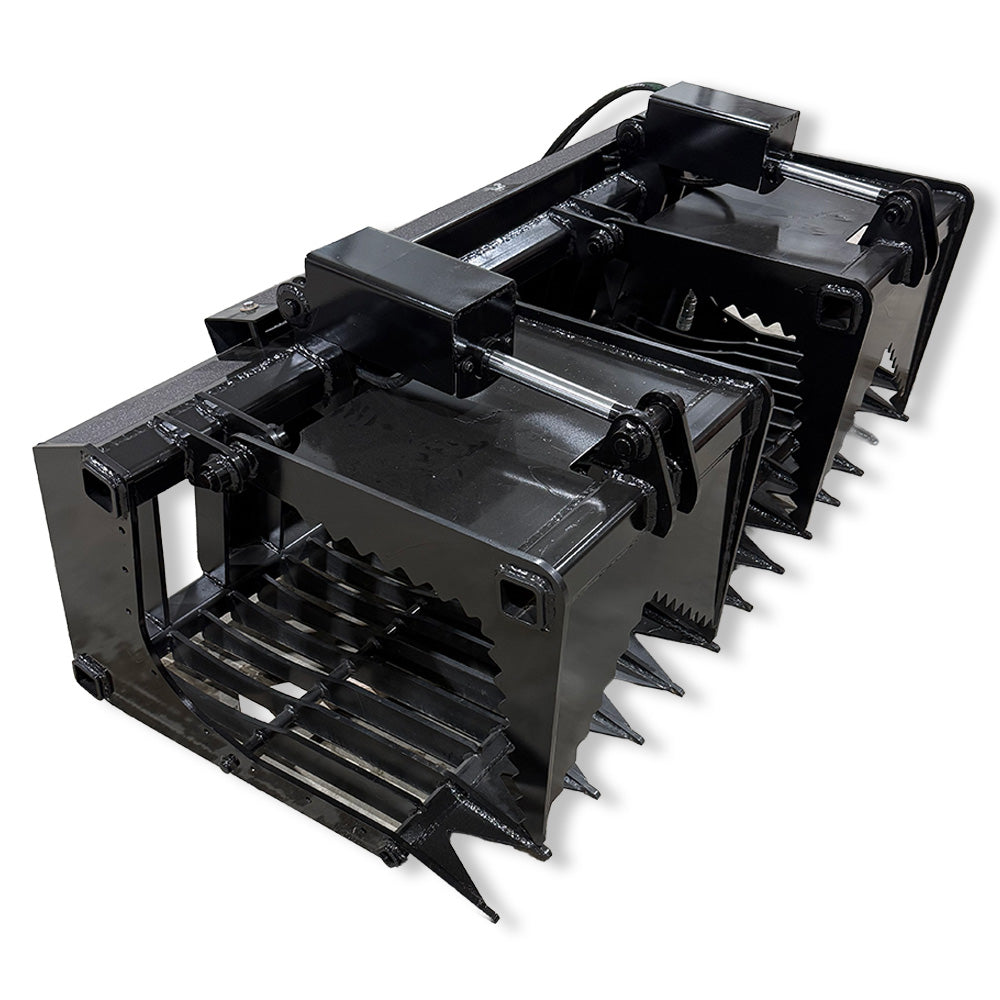

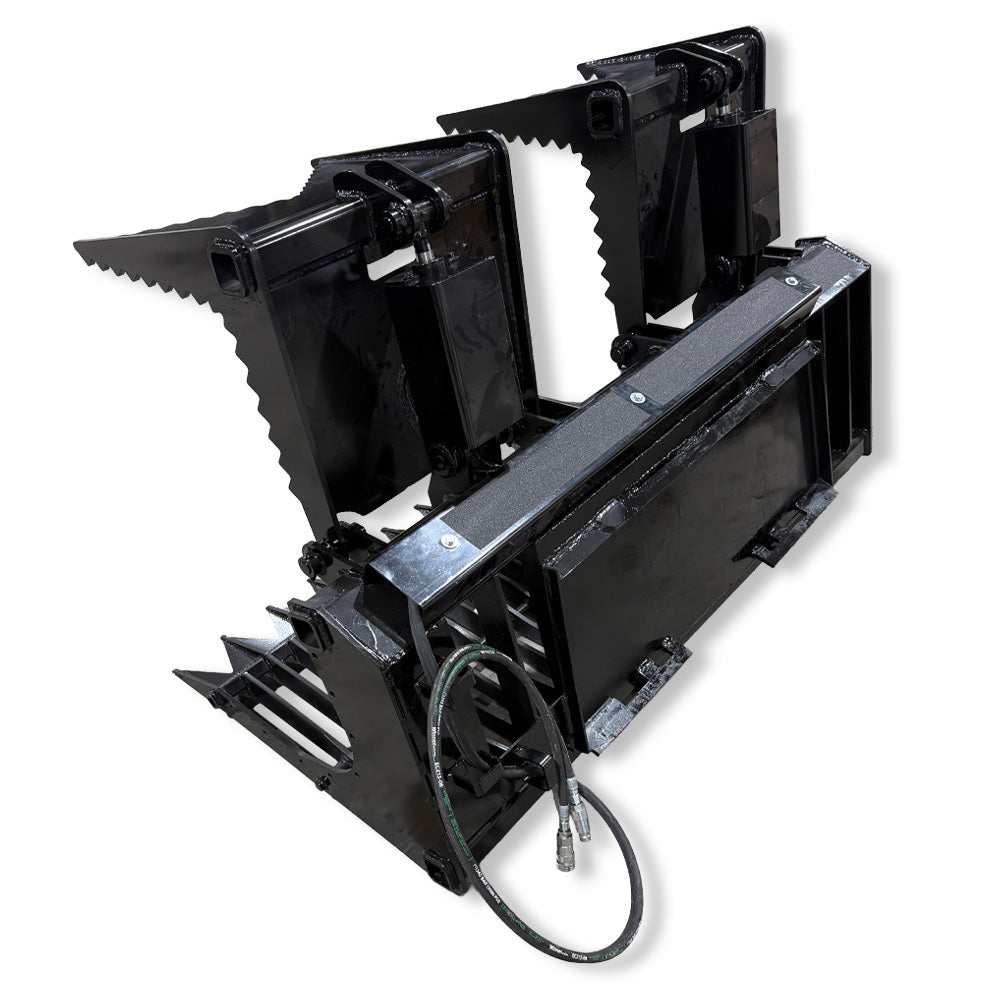

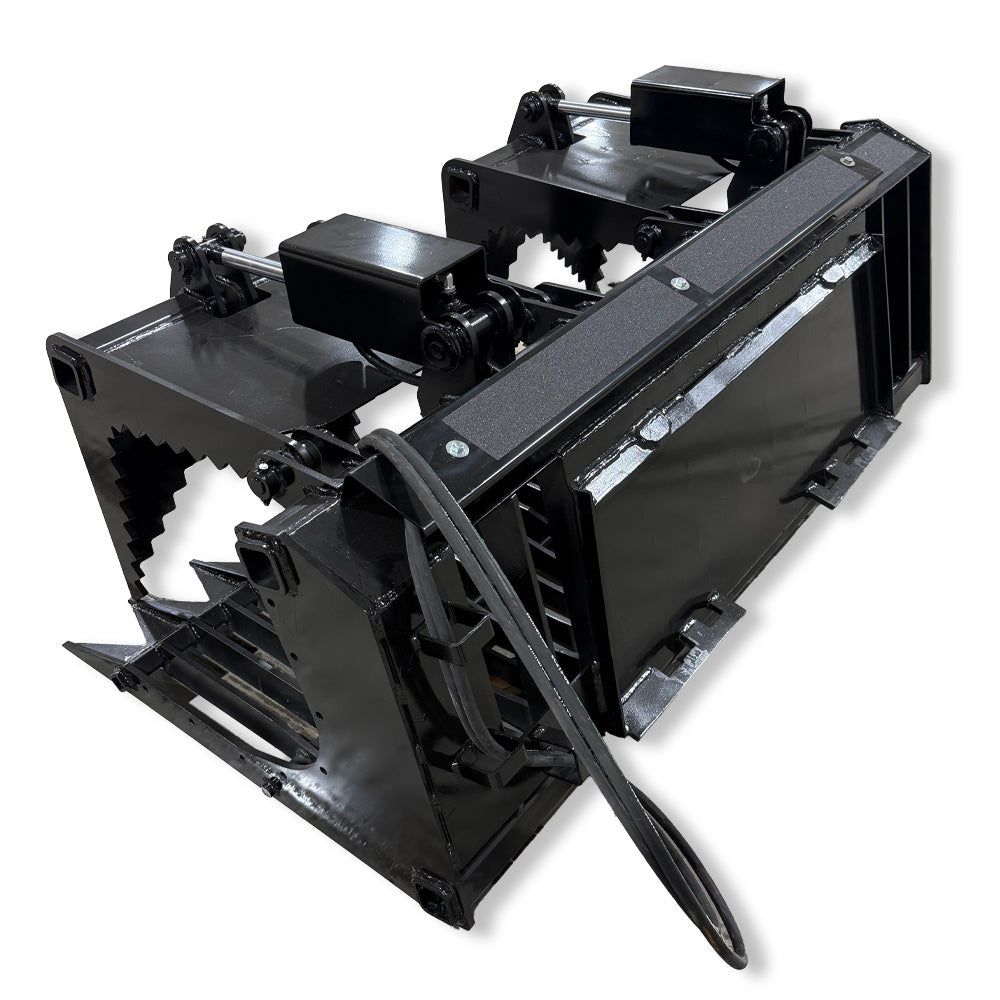

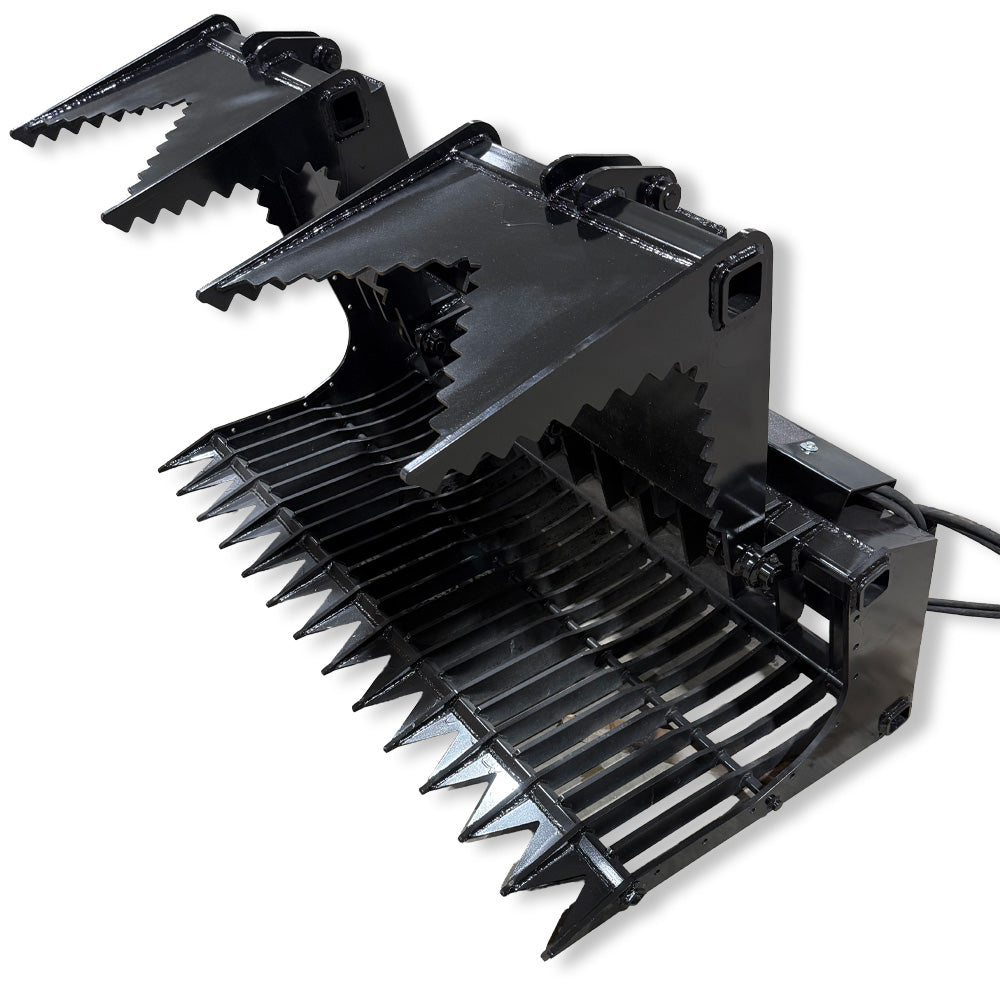

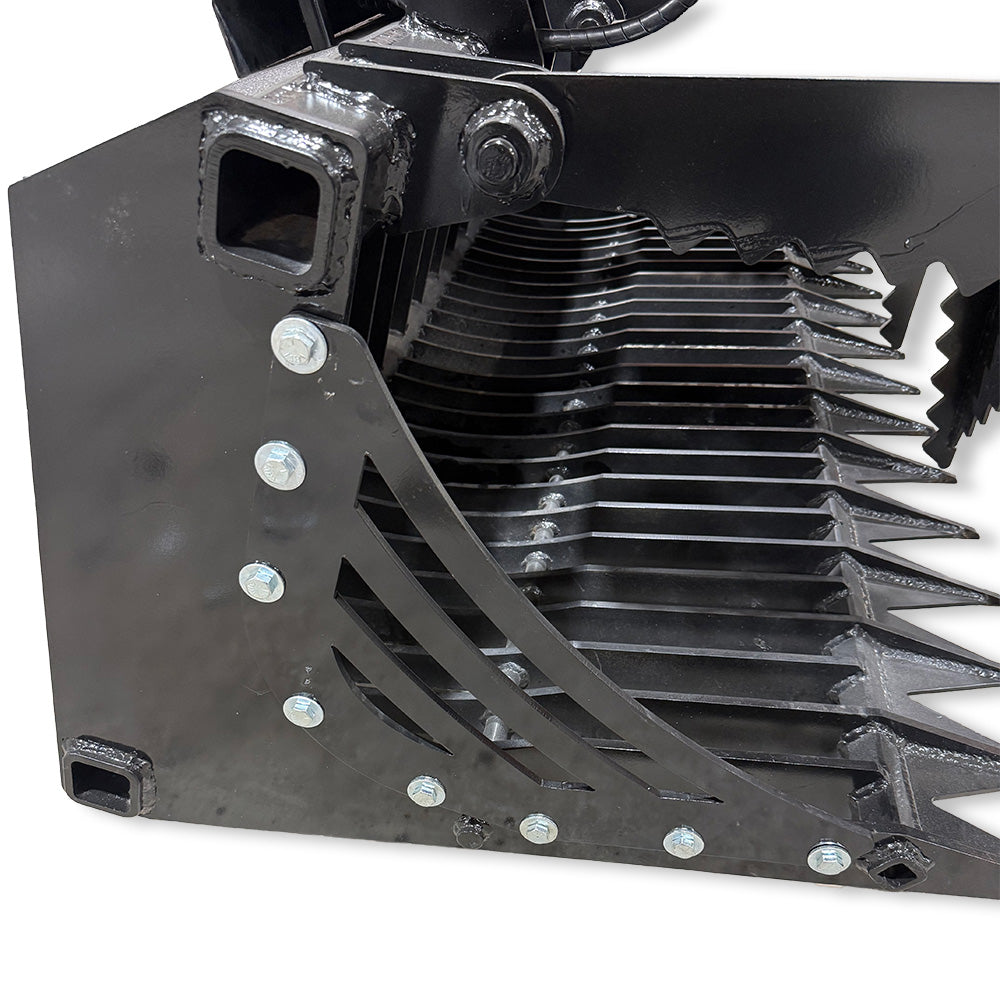

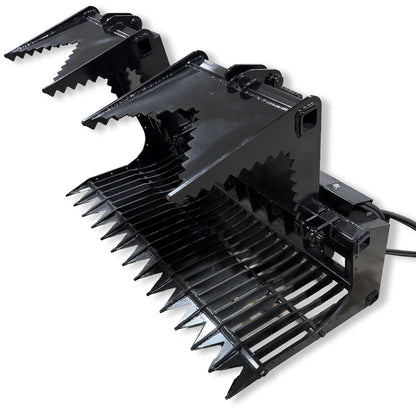

Grapple Bucket

Our Grapple Buckets are designed to give you the versatility and strength needed for handling brush, logs, debris, rocks, and loose material. Customers can choose between our standard material bucket or rock bucket, each available with the option of one or two heavy-duty grapple arms to match your specific needs.

The grapple arms are built for durability, mounted with ½” thick steel plates and constructed from ½” thick serrated side plates with a ¼” thick steel skin for a strong yet efficient design. This serrated profile helps grip material securely, making it easier to handle uneven loads.

Designed to attach to a universal skid steer quick tach hookup, the grapple system features plug-and-play hydraulic quick connects that utilize your skid loader’s existing power and controls for simple installation and operation.

For full bucket specifications, refer to our Rock Bucket or Material Bucket listings depending on the setup you choose. Each unit is finished with a gloss black paint enamel.

66” single cylinder/ Standard Material Bucket

• Specs: 43” Length X 68” Width X 35” Height X 700 LBS

 66” Dual cylinder/ Standard Material Bucket

• Specs: 43” Length X 68” Width X 35” Height X 900 LBS

72” Dual cylinder/ Standard Material Bucket

• Specs: 43” Length X 74” Width X 35” Height X 980 LBS

72” Dual cylinder/ Rock Bucket

• Specs: 43” Length X 74” Width X 35” Height X 1127 LBS

78” Dual cylinder/ Rock Bucket

• Specs: 43” Length X 80” Width X 35” Height X 1220 LBS

80” Dual cylinder HD Material Bucket ¼” thick skin ¾” thick tines
