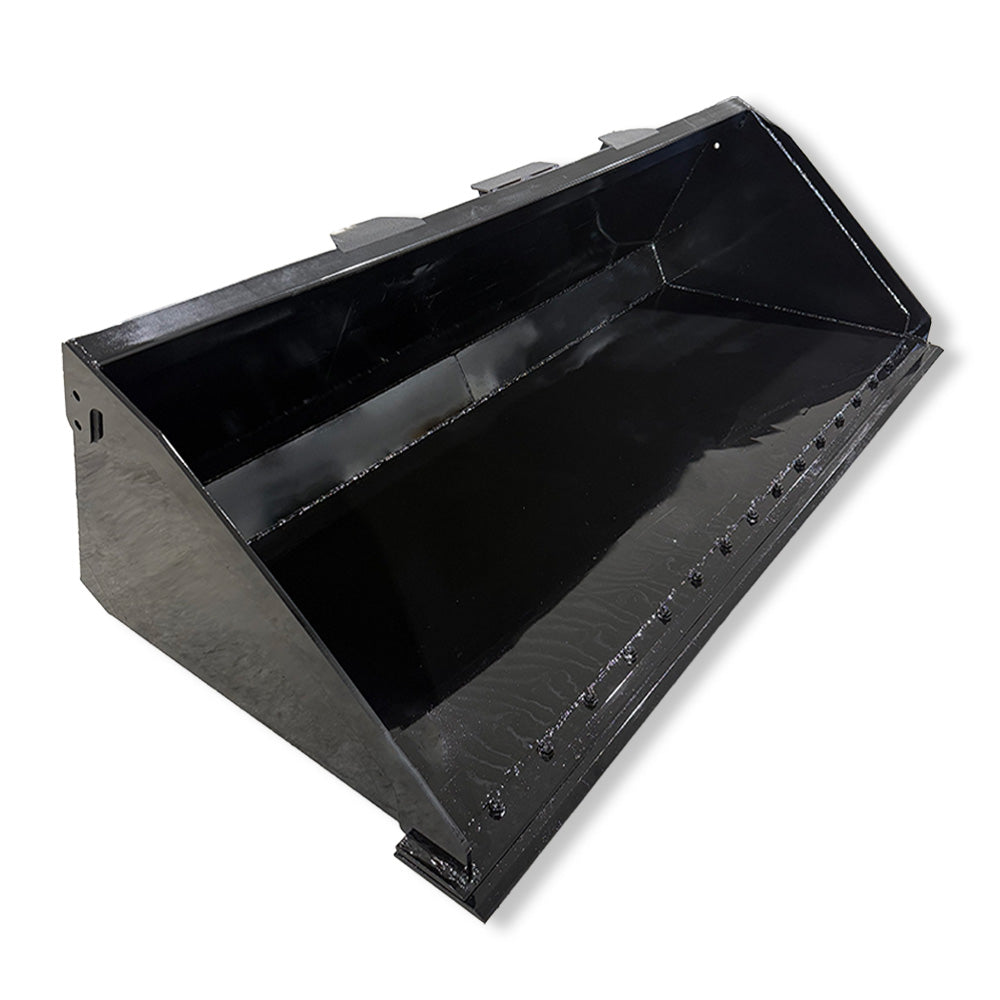

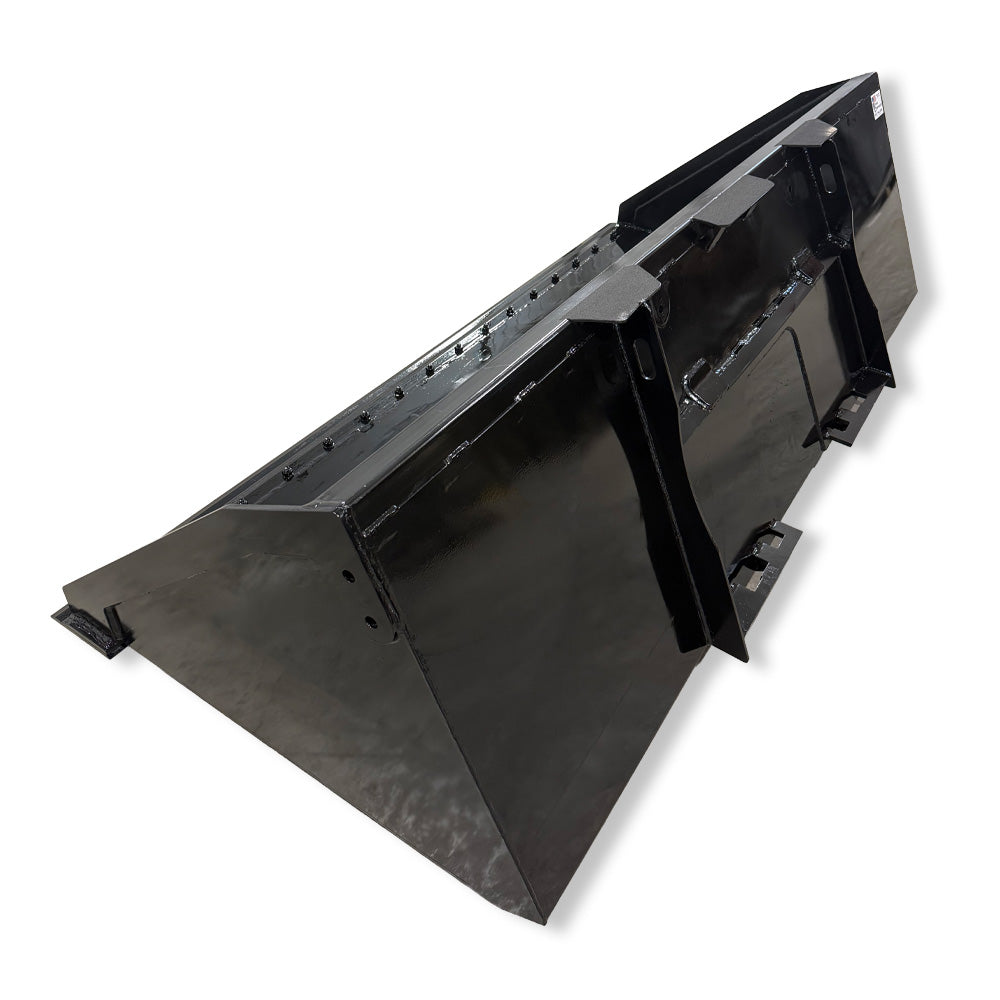

Description: Constructed of 10ga. Carbon steel skin and a 3/16” thick square tube back bone, this bucket is designed to last. Side reinforcements are ½” thick steel welded to a fully welded on single edge blade. Option to bolt on a double edge blade, so you replace a blade...not a bucket. Almost every bucket has the ability to have an added on back extension to get more out of your haul. Finished with a gloss black paint enamel.
Made to fit almost all makes and models of (Skid steer) parts moving Equipment with a “quick tach” style hookup.
Bucket Size Specs
Snow/Material Buckets:
-60” (5’)
Specs: 43-1/4” Width X 61” Length X 20” Height X 660 LBS.
Top extension: N/A
-72” (6’)
Specs: 43-1/4” Width X 73” Length X 20” Height X 795 LBS.
Top extension: N/A
-78” (6-1/2’)
Specs: 43-1/4” Width X 79” Length X 20” Height X 860 LBS.
Top extension: N/A
-84” (7’)
Specs: 85-1/2” Width X 43” Length X 27” Height X 670 LBS.
Top extension Specs: 86” Width X 3” Length X 21” Height X 90 LBS.
-96” (8’)
Specs: 97-1/2” Width X 43” Length X 27” Height X 730 LBS.
Top extension Specs: 98” Width X 3” Length X 21” Height X 95 LBS.
-101” (8’5”)
Specs: 102-1/2” Width X 52” Length X 31” Height X 865 LBS.
Top extension Specs: 102” Width X 3” Length X 21” Height X 97 LBS.
-120” (10’)
Specs: 121-1/2” Width X 43” Length X 27” Height X 950 LBS.
Top extension Specs: 122” Width X 3” Length X 21” Height X 128 LBS.
